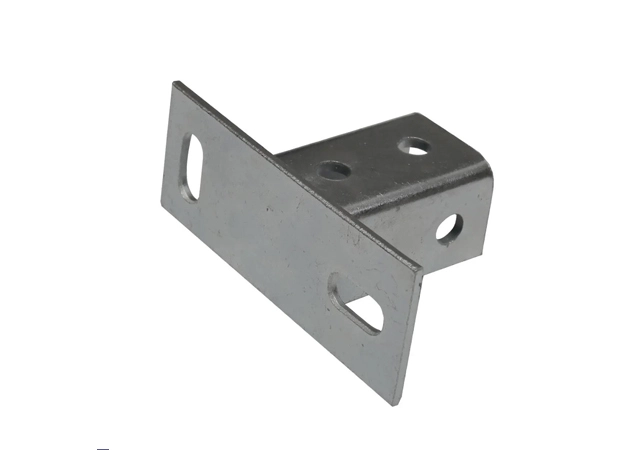

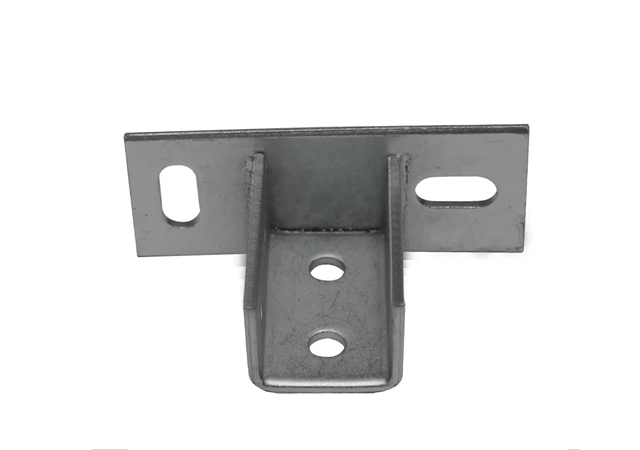

Bracket bases, including standardized options like 10 inch column base, 10 inch round column base, and 6 inch column base for varied load requirements, are used to build support systems for large infrastructure such as tall buildings and Bridges. In these applications, the support base, as part of the construction and design of the building, carries the important function of supporting the weight of the building and withstanding the pressure of concrete placement. The design of the support base needs to be strong and stable, able to withstand loads, and can be quickly disassembled after construction is complete to reduce construction time and labor costs—with the flexible adjustable column base further optimizing installation precision and adaptability to on-site conditions.
1 | Size | 65mm*48mm*160mm |
2 | Plate | 55mm*90mm*6.0mm |
3 | Length | As customers’ requirement |
4 | Surface treatment | HDG/electro-galvanized |
5 | Type | slotted |
6 | Material | Q235B |

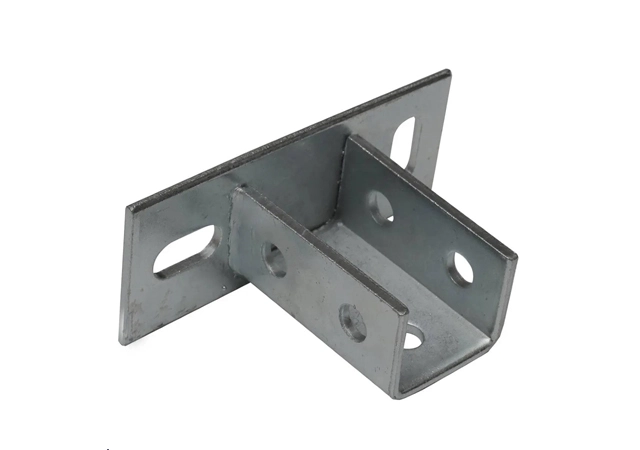

The Column Base of the Photovoltaic Support System, featuring a wending base with holes, is a specialized component—distinct from general-purpose architectural column base and building column base used in traditional construction—designed to anchor and stabilize solar panel structures efficiently. This base is engineered for durability, crafted from high-quality materials that withstand environmental stress and load pressures, including variants like the robust square column base for enhanced stability in solar installations. The inclusion of pre-drilled holes facilitates easy and secure anchoring to foundations, allowing for quick installation and alignment adjustments. Its design is optimized for supporting photovoltaic panels, ensuring a stable foundation that maximizes energy absorption by maintaining the correct orientation and elevation—aligning with the core column base definition of providing structural anchorage and load-bearing support. The corrosion-resistant finish protects against weather elements, prolonging the system's lifespan. This column base is an essential part of a reliable and efficient photovoltaic support system, offering strength, adaptability, and ease of installation for solar energy projects.
Discover the strength of Junsen's cold frame steel structure. Contact us today for innovative, durable, and efficient construction solutions!
